Wheel diameter 500 mm︱Cutting height 330 mm︱cutting width 480 mm︱Motor output 1,5 kW︱Table dimensions 495 x 670 mm︱Table tiltable 45 Grad︱

---

Wheel diameter 700 mm︱Cutting height 420 mm︱cutting width 680 mm︱Motor output 3 kW︱Table dimensions 695 x 990 mm︱Table tiltable 45 Grad︱Dimensions (L/W/H) 1260x840x2270 mm︱machine weight ab. 400 kg︱

---

Wheel diameter 600 mm︱Cutting height 380 mm︱cutting width 570 mm︱Motor output 2,2 kW︱Table dimensions 810 x 590 mm︱table height 905 mm︱voltage 400 V / 50 Hz ︱range L-W-H 1120 x 750 x 2125 mm︱Weight 275 kg︱Dust suction hood 2 x 100 mm︱band speed 1550 m/min︱

---

Cutting length 3100 mm︱Cutting height 45 mm︱Motor output 1,8 kW︱Dimensions (L/W/H) 3950 x 470 x 920 mm︱machine weight ab. 400 kg︱

---

cutting width 430 mm︱Cutting height 135 mm︱Motor output 2 kW︱Dimensions (L/W/H) 1100x700x800 mm︱machine weight ab. 110 kg︱

---

# 5051 Graule Crosscut Saw ZS 135, new -------------------------------------------------- ----------------------------------------------- - Crosscut and miter saw with a maximum cutting height of 135 mm - Sturdy cast iron - Precise ball bearing guide of the tool carriage on hardened and ground steel shafts - Manual feed - Rapid miter setting up to 65 ° - Re-adjustable positive stops - Lower blade guard can be connected to suction Technical specifications: --------------------------------- - Motor: 400 V / 2.0 kW - Speed: 3800 U / min - Cutting length: 440 mm (at 90 °) - Cutting height: 135 mm (at 90 °) - Miter horiz .: 45 ° -90 ° -25 ° - Saw blade Ø 350 mm - Suction 100 mm - 110 kg Crosscut and miter saws Accessories for -------------------------------------------------- ------------------------------------- All Crosscut and miter saws are in the basic equipment without blade Hydraulic feed brake (for type ZS 85 N to ZS 170 N) Price on request! Hydraulic feed brake (for type ZS 200 and ZS 200 N) Price on request! Pneumatic Sägeblattsprüheinrichtung Price on request! Pneumatic material clamping left side for types ZS 85 Price on request! Pneumatic material clamping on both sides of the top for the types ZS 135 ZS 200 N up Price on request! Pneumatic maintenance unit, consisting of water, pressure reducing valve with pressure gauge and lubricator Price on request! Pressure reducing valve with manometer Price on request! Remodeling the crosscut saw type ZS 85 for electrical installation on type ZS 85 E, suitable for cutting cable channels, sectional area at 45 ° inclined: 72 mm x 380 mm Price on request! Pole-changing motor 400 volts, n = 1350/2750 rev / min for type ZS 85 E, for cutting thin sheet steel channels Price on request! Machine stand for the types ZS 85 N, NS ZS 85, ZS 85 NS-SW, IS 135 and IS 170 Price on request! Machine stand for the types ZS 135 N and ZS 170 N Price on request! Portable machine substructure with 1.5 mtr. Roller conveyors on each side, left with Scale and stop slide (for types ZS 85 N to ZS 170 N) Price on request! 3 kW three-phase brake motor 380-400 volts (only types ZS 135 ZS to 170 N) Price on request! Cross ruler to cut acute angles (not type ZS 85) Price on request! Machine via handwheel on both sides tiltable, left to 45 ° right up to 60 °, 90 ° from the middle of (type ZS 170 N) Price on request! Holding device for angular aperture in Rolladenbau (only types ZS 135 ZS to 200 N) Price on request! Remodeling the crosscut saw type ZS 200 Saw blade diameter 550 mm, cutting height 215 mm for the Rolladenbau Price on request! Digital angle display for horizontal angle adjustment Price on request! Digital angle indicator for horizontal and vertical angle adjustment (both sides tiltable only in conjunction with machine) Price on request! Laser device, laser beam of about 300 mm line length Price on request! Hydropneumatic feed unit with two-hand safety control (only for the application of aluminum machining) Price on request! Motorized miter for horizontal and vertical angle adjustment with nominal / actual display Price on request! Motorized miter for horizontal angle adjustment with nominal / actual display Price on request! Motorized miter for vertical angle adjustment with nominal / actual display Price on request! Chip bag with zipper for emptying (Machine type) Price on request! Suction mobile with 2.5 mtr. Hose, 400 V (not allowed in the commercial sector for wood dust) Price on request! Suction mobile with 2.5 mtr. Hose, 400 V clean air system with Approval "H2" Price on request! Automatic switch for machine with suction system Price on request! Special cutting lengths up to approx 600 mm on request Blades: --------------------- HM circular saw blade for wood 300 x 3,2 x 40 mm 72 WZ neg Price on request! HM circular saw blade for aluminum and plastics 300 x 3,3 x 40 mm 96 FTZ neg Price on request! HM circular saw blade for thin-walled steel profiles 305 x 2,2 x 40 mm 80 FTZ neg (short service life) Price on request! HM circular saw blade for wood 350 x 4,0 x 40 mm 42 WZ neg Price on request! HM circular saw blade for wood 350 x 3,2 x 40 mm 72 WZ neg Price on request! HM circular saw blade for aluminum and plastics 350 x 3.5 x 40 mm 108 FTZ neg Price on request! HM circular saw blade for wood 420 x 4,0 x 40 mm 48 WZ neg Price on request! HM circular saw blade for wood 420x3,5x40 mm 84 WZ neg Price on request! HM circular saw blade for aluminum and plastics 420 x 3.8 x 40 mm 108 FTZ neg Price on request! HM circular saw blade for wood 520 x 4,4 x 50 mm 60 WZ neg Price on request! HM circular saw blade for aluminum and plastics 520 x 4.4 x 50 mm 120 FTZ neg Price on request! HM circular saw blade for aluminum and plastics 550 x 4,0 x 50 mm 180 FTZ neg Price on request! techn. Details according to manufacturer - ohn guarantee! All genes mentioned here prices are excl. Of VAT currently valid. (Domestic)

cutting width 420 mm︱Cutting height ja mm︱Motor output 2 kW︱Cutting height at 45° 115 mm︱Dimensions (L/W/H) 1100x700x800 mm︱machine weight ab. 150 kg︱

---

# 5052 Graule cutting and miter saw ZS 170 N, new -------------------------------------------------- ------------------------------ ----------------- - Crosscut and miter saw with a maximum cutting height of 170 mm - Cast iron construction - Precise ball bearing guide of the tool carrier on hardened and grinded steel shafts - Manual feed - Rapid miter setting up to 65 ° horizontally and 45 ° vertically (up 60 ° ZS 200N) - Re-adjustable positive stops - Lower blade guard can be connected to suction Technical Specifications: --------------------------------- - Motor: 400 V / 2.0 kW - Speed: 3500 U / min - Cutting length: 430 mm (at 90 °) - Cutting height: 170 mm (at 90 °) - Miter horiz .: 45 ° -90 ° -25 ° - Miter verti .: 90 ° -45 ° (left) - Saw blade Ø 420 mm - Suction 100 mm - 120 kg Accessories for Crosscut and miter saws -------------------------------------------------- ------------------------------ ------- All Crosscut and miter saws are the basic equipment without Sawblade Hydraulic feed brake (for type ZS 85 N to ZS 170 N) Price On Request! Hydraulic feed brake (for type ZS 200 and ZS 200 N) Price On Request! Pneumatic Sägeblattsprüheinrichtung Price On Request! Pneumatic material clamping left side for types ZS 85 Price On Request! Pneumatic material clamping on both sides of the top for the types ZS 135 to ZS 200 N Price On Request! Pneumatic maintenance unit, consisting of water, Pressure reducing valve with pressure gauge and lubricator Price On Request! Pressure reducing valve with pressure gauge Price On Request! Remodeling the crosscut saw type ZS 85 for electrical installation on type ZS 85 E, suitable inclined to cut cable ducts Cutting Capacity at 45 °: 72 mm x 380 mm Price On Request! Pole-changing motor 400 volts, n = 1350/2750 rev / min for type ZS 85 E, for Cutting of thin-walled sheet steel channels Price On Request! Machine stand for the types ZS 85N, ZS 85 NS, ZS 85 NS-SW, ZS 135 and ZS 170 Price On Request! Machine stand for the types ZS 135 N and ZS 170 N Price On Request! Portable machine substructure with 1.5 mtr. Roller conveyors on each side, left Page Scale and stop slide (for types ZS 85 N to ZS 170 N) Price On Request! 3 kW three-phase brake motor 380-400 volts (only types ZS 135 ZS to 170 N) Price On Request! Cross ruler to cut acute angles (not type ZS 85) Price On Request! Machine via handwheel on both sides tiltable, left to 45 ° right up to 60 °, from mid 90 ° (only type ZS 170 N) Price On Request! Holding device for angular aperture in Rolladenbau (only types ZS 135 to ZS 200 N) Price On Request! Remodeling the crosscut saw type ZS 200 Saw blade diameter 550 mm, cutting height 215 mm for the Rolladenbau Price On Request! Digital angle display for horizontal angle adjustment Price On Request! Digital angle indicator for horizontal and vertical angle adjustment (only in conjunction with machine on both sides tiltable) Price On Request! Laser device, laser beam with about 300 mm line length Price On Request! Hydropneumatic feed unit with two-hand safety control (only for the application range of aluminum machining) Price On Request! Motorized miter for horizontal and vertical angle adjustment with target / actual display Price On Request! Motorized miter for horizontal angle adjustment with Target / actual display Price On Request! Motorized miter for vertical angle adjustment with Target / actual display Price On Request! Chip bag with zipper for emptying (Machine type) Price On Request! Suction mobile 2.5 mtr. Hose, 400 V (in the commercial sector Wood dust is not allowed) Price On Request! Suction mobile 2.5 mtr. Hose, 400 V system with clean air Approval "H2" Price On Request! Automatic switch for machine with suction system Price On Request! Special cutting lengths up to approx 600 mm on request Blades: --------------------- HM circular saw blade for wood 300 x 3,2 x 40 mm 72 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 300 x 3,3 x 40 mm 96 FTZ neg Price On Request! HM circular saw blade for thin-walled steel profiles 305 x 2,2 x 40 mm 80 FTZ neg (short service life) Price On Request! HM circular saw blade for wood 350 x 4,0 x 40 mm 42 WZ neg Price On Request! HM circular saw blade for wood 350 x 3,2 x 40 mm 72 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 350 x 3.5 x 40 mm 108 FTZ neg Price On Request! HM circular saw blade for wood 420 x 4,0 x 40 mm 48 WZ neg Price On Request! HM circular saw blade for wood 420x3,5x40 mm 84 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 420 x 3.8 x 40 mm 108 FTZ neg Price On Request! HM circular saw blade for wood 520 x 4,4 x 50 mm 60 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 520 x 4.4 x 50 mm 120 FTZ neg Price On Request! HM circular saw blade for aluminum and plastics 550 x 4,0 x 50 mm 180 FTZ neg Price On Request! techn. Details according to manufacturer - ohn guarantee! All genes mentioned here prices are excl. Of VAT currently valid. (Inland)

Sawblade tiltable +45,5/-45,5 °︱Length of the rolling table 3.800 mm︱cutting width 1.250 mm︱Number of working hours 1522 h︱

---

Panhans sizing and trimming circular saw type V90 twin II -------------------------------------------------- - Basic equipment: -------------------------------------------------- - - Swivel range +45.5 / -45.5 degrees - Saw blade diameter max. 500 mm - Cutting height max. 172.5 mm - Stepless electronic speed control 2,000-6,000 n1 / min - Motor power 7.5 kW - Touch screen 5.7 inch positioning control for electrical height and swivel adjustment with integrated position indicator for KS stop in the control panel above - Rip fence can be electrically positioned using the touch screen - cutting length 3,200 mm - cutting width 1,250 mm - Super-Gehrfix I - Miter auxiliary stop - Voltage 400 V / 50 Hz Special equipment -------------------------------------------------- - - Rip fence for cutting long, narrow parts - Auto-EPS scoring unit - Quickstep scoring system including 1 set of saw blades - cutting length 3,800 mm (instead of 3,200 mm) - Swing away device for cross slide (technical information according to the manufacturer - without guarantee!)

Sawblade tiltable 45 °︱Length of the rolling table 3000 mm︱cutting width 1000 mm︱Motor output 5,5 kW︱

---

Cutting height 205 mm︱Motor output 11 kW︱cutting width 450 mm︱Cutting length 5200 mm︱

---

Cutting height 120 mm︱Motor output 11 kW︱cutting width 420 mm︱Cutting length 5200 mm︱

---

Working width 630 mm︱Working height 250 mm︱Motor output 7,5 kW︱Feed speed 7 und 14 m/min.︱Dimensions (length / width) 2650 x 1770 mm︱

---

Working width 410 mm︱Length of the planing table 2850 mm︱Number of knives 4 (Tersa) St.︱Motor output 5,5 kW︱loading dimensions L x W x H 2950 x 1260 mm︱weight 870 kg︱

---

Working width 530 mm︱Length of the planing table 3.000 mm︱Number of knives 4-TERSA St.︱Motor output 5,5 kW︱

---

FIMAL surface planer type PF 530 N --------------------------------------- NEW MACHINE "Partnership Edition" Technical specifications: --------------------------------------- Planing table dimensions: 3,000 x 530 mm Feed table length: 1,800 mm Dressing fence dimensions: 1,500 x 175 mm Swivel range stop: 0 - 45 ° 4-knife cutterblock system TERSA d = 120mm: 5,000 rpm Max. Chip removal dressing according to CE: 8 mm Motor 380 volts / 50 Hz .: 5.5 kW Sound level according to EN 27960: 82.9 - 88.9 dB (A) Basic equipment: Electrics according to CE standards Magnetic brake Extraction nozzle d = 150mm Bridge protection control panel operated above Original AIGNER aluminum stop with integrated auxiliary stop --------------------------------------- Special offer from stock: 8,990.00 euros --------------------------------------- All prices plus VAT / plus Freight and assembly according to expenditure Please also note the special offer together with FIMAL Thickness planer SP 63 A (Technical information according to the manufacturer - without guarantee!)

Working width 630 mm︱Working height 3,300 mm︱Motor output 7,5 kW︱Number of knives 4 St.︱Feed speed 7 + 14 m/min.︱loading dimensions L x W x H 1070 x 1200 x 1060 mm︱weight 1050 kg︱

---

Working width 630 mm︱Working height 3-310 mm︱Motor output 7,5 kW︱Number of knives 4-TERSA St.︱Feed speed 6-20 m/min.︱Vertikal stroke elektrisch ︱

---

FIMAL thickness planer type SP 63 A --------------------------------------- NEW MACHINE "Partnership Edition" Technical specifications: --------------------------------------- Working width: 630 mm 4-knife cutterblock system TERSA, d = 120mm: 4,800 rpm Max. Chip removal dressing according to CE: 8 mm min./max. Thickness passage: 3/310 mm min. Workpiece length: 250 mm Feed speed: continuously 6 - 20 m / min. Motor 380 volts / 50 Hz .: 7.5 kW Sound level according to EN 27960: 86 - 90 dB (A) Basic equipment: Thickness table adjustment via 4 trapezoidal thread spindles Electromotive thickness table lift with electronic Positioning device Electrics according to CE standard magnetic brake Circuit breaker Emergency switch Planer shaft cover safety switch Extraction nozzle d = 150mm Thickness table extension 600 mm 1 steel feed roller (option rubber-coated roller see below) 2 steel pull-out rollers ((option rubber-coated roller see below) --------------------------------------- Special offer from stock: 11,990.00 euros --------------------------------------- Storage machine additionally equipped with rubberized infeed and outfeed rollers (instead of steel rollers), additional price per piece 490.00 euros = 1,470.00 euros --------------------------------------- Total price including rubberized rollers: 13,460.00 euros --------------------------------------- All prices plus VAT / plus Freight and assembly according to expenditure Please also note the special offer together with FIMAL Surface planer Typ PF 530 N - see attached PDF! (Technical information according to the manufacturer - without guarantee!)

Table dimensions 1340,800 mm︱Motor output 7,5 kW︱Spindle diameter 30 mm︱reus 1500 - 10000 stufenlos U/min︱Weight 980 kg︱

---

Table dimensions 1100,760 mm︱Motor output 5,5 kW︱Spindle diameter 30 mm︱reus 3000/4500/6000/9000 U/min︱Weight 800 kg︱

---

Table dimensions 2600x 800 mm︱Motor output 11 kW︱Spindle diameter 30 u.40 mm︱reus 3000,4500,6000,9000 U/min︱

---

Panhans Type 240 with 2-axis control -------------------------------------------- with swiveling milling spindle, double-sided Swivel assembly bearing with 2 strong Segment guides, stands in modern Steel construction, thick-walled table, high- Ribbed cast design, changeable Milling arbor, three-phase motor for 4 speeds, electrical height and swivel adjustment in rapid and creep speed and electronic Digital display, incremental changeover with height adjustment, milling stop with Fine adjustment and metal stop jaws and replaceable aluminum splinter tongues, Extraction nozzle on the router stop and below of the table 120 mm D, minimum suction speed at the suction nozzle 20 m / s, rotatable table insert, short milling arbor 30 mm D, locked reversible switch for left and right rotation, lockable Main switch, cam switch, automatic Engine brake Table size: 1350 x 800 mm Table height 880 mm Motor power 11 KW Milling arbor holder MK 5 Speeds 3000/4500/6000/9000 rpm. Swivel range of the milling arbor - 5 ° to + 45 ° Height adjustment approx. 145 mm Table top extension on both sides, total length 2500 mm, including extendable Frame support stepless 4-roller feed 2-axis control Milling arbor with 40 mm diameter and 150 mm length (technical information according to the manufacturer - without guarantee!)

Table dimensions - mm︱Motor output 7,5 kW︱Spindle diameter 40 mm︱reus 6000 U/min︱Weight 300 kg︱Year 2018 ︱

---

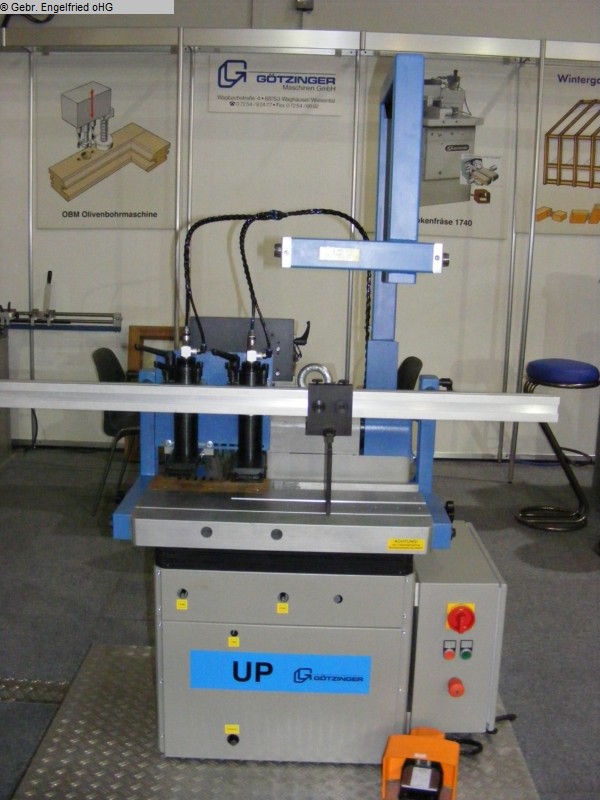

Universal profiler Götzinger UP 1730 Machine for frontal and cross-side machining. Different application technology for wood products First-class surface quality of machined workpieces due to high speed, Particularly stable bearing of the milling shaft and through synchronous milling. Rapid tool change through one-sided mounted cutter shaft and through swiveling clamping device. The whole work process, such as clamping, pneumatic-hydraulic table feed with speed control (stepless) and fast reverse. By exchanging the milling segments and by changing the attachment points can be up to ten different with a single profile milling set Create profile companies. Technical specifications: Cutting depth max .: 30 mm Milling height max .: 150 mm Voltage cross section per stroke max. Softwood: 60 cm² Motor power: 7.5 kW Speed: 6000 rpm Tool circle maximum: 180 mm Tool span: 200 mm Milling spindle diameter: 40 mm Milling spindle clamping length: 200 mm Working cycles max. per minute: 8 Compressed air connection: 6 bar Air requirement per working cycle: 14 l Air supply extraction: 3000m³ / h Dimensions: L / W / H: 1300 x 700 x 1170 mm Weight: 300 kg 380 V, 50 Hz (technical data according to manufacturer - without guarantee!)

axis stroke (X,Y,Z) 3950,2145,555 mm︱Number of spindle head vertical 13 St.︱Number of spindles head horizontal 6 St.︱Number of tools 22 St.︱Number of milling agregates 1 St.︱working dimensions 3200x2000x200 mm︱Motor output 12 kW︱Control Beckhoff CNC︱Number of axles 5 St.︱

---

Masterwood Project 385 CNC-Bearbeitungszentrum --------------------------------------------- 5-Achs CNC-Bearbeitungszentrum in Auslegerbauweise (dadurch sehr große PLatten auflegbar) für Innenausbau, Plattenbearbeitungen aller Art. Kurze Zusammenfassung: --------------------------------------------- Verfahrwege X = 3950 mm; Y = 2145 mm; Z = 555 mm Arbeitsbereich: X = 3200 mm; Y = 2000 mm; Z = 200 mm 1 Stk. 5-Achs-Hochleistungsspindel, 12 kW, mit HSK 63 F Aufnahme 1 Stk. fest installierter Bohrkopf mit 19 Spindeln mit 7 einzeln abrufbaren Vertikalbohrspindeln X-Richtung mit 6 einzeln abrufbaren Vertikalbohrspindeln Y-Richtung mit 2 doppelten Horizontalbohrspindeln X-Richtung und 1 doppelte Horizontalbohrspindel in Y-Richtung Sägeaggregat in Bohrkopf integriert Karussellwerkzeugwechsler mit 22 Plätzen und 102 mm Rasterabstand Konsolentisch mit 6 Traversen Werkstückanhebevorrichtung 24 Stk. Vakuummspanner für Platten und Innenausbau 1 Stk. Vakuumpumpe 100m3/h CE Schutzvorrichtung mit Bumper und Schutzgitter Referenzanschläge mit Endlauffühler Referenzring für Winkelgetriebe KIT Bogenbearbeitung (Vorbereitung für Einsatz von Massivholzspannern) Automatische Messvorrichtung für Werkzeuglänge Fernbedienung Beckhoff-Steuerung und Bosch Motorisierung Konstruktions-Software Masterwork: 2D-Wop für Standardanwendung Plattenbearbeitung/Innenausbau, Rundbogen, Türen Masterwork Funktion Lamelloverbindung Master 3D Stufe 2: für komplexere Bearbeitungen, optional auch erweiterbar für 5-Achs voll interpolierend Fracht und Montage innerhalb Deutschland Technik und Dienstleistungen gemäß beiliegender ausführliche Beschreibung --------------------------------------------- SONDERPREIS in dieser Ausführung: 99.990,00 Euro zzgl. St.! --------------------------------------------- Ausführliche Beschreibung siehe PDF anbei. Mehr Optionen auf Anfrage! (technische Angaben laut Hersteller- ohne Gewähr!)

axis stroke (X,Y,Z) unbegrenzt, 1000, 60 mm︱Number of spindle head vertical 10 St.︱Number of spindles head horizontal 6 St.︱milling motor 4,5 kW︱

---

CNC-Bearbeitungszentrum zum HAMMER-PREIS! MASTERWOOD TF 100 2.0 Partnership Edition Ausstattung: -------------------------------------- - Bohrkopf mit 16 Bohrern für 5-seitige Bearbeitung - Nutsägeaggregat - Fräsaggregat mit 6-fach-Werkzeugwechsler - inkl. Nutsägeblatt, 2 Diamantfräser, 1 WPL-Schlichtfräser - Vorrüstung für CLAMEX- und Türenpaket - 2 klappbare Rollenbahnen - programmgesteuerte Zentralschmierung -------------------------------------- AKTIONSPREIS 42.500,00 Euro (zzgl. MwSt.)ab Werk -------------------------------------- Fracht, Aufstellung, Einweisung innerhalb Deutschland inklusive 8-stündiger Schulung individuell und vor Ort AKTIONSPREIS 3.000,00 Euro (zzgl. MwSt., Preis bisher 2.582,00 Euro) Die Optionen der Partnership Edition: -------------------------------------- Komplettpaket für CLAMEX Verbinder bestehend aus: -------------------------------------- - Winkelgetriebe mit CLAMEX Fräser inkl. spezieller Aufnahme im Werkzeugwechsler und Softwareanpassung - Original Lamello Werkzeugpaket: 2x P-System Diamantfräser, Fräsdorn - Gutschein für 300 Paar CLAMEX P-14, 80 Paar TENSO P-14 AKTIONSPREIS 3.500,00 Euro (zzgl. MwSt.) Tür-Komplettpaket bestehend aus: -------------------------------------- - Winkelgetriebe mit Schlosskastenfräser, spezieller Aufnahme im - Werkzeugwechsler, Softwareanpassung inkl. Makro für Schlosskasten AKTIONSPREIS 3.500,00 Euro (zzgl. MwSt.) Softwarepaket PaletteCAD start + CAM Anbindung -------------------------------------- Unsere Premium-Software mit perfekt abgestimmter CNC Schnittstelle – bei uns selbstverständliche bereits inklusive CLAMEX Makro. AKTIONSPREIS 3.000,00 Euro (zzgl. MwSt.) Aktionspreise gültig solange Vorrat reicht. Zwischenverkauf vorbehalten. Ausführliche Beschreibung: Das Masterwood CNC Bearbeitungszentrum PROJECT TF ist ideal für komplexe CNC Bearbeitung auf kleinstem Raum, sowohl für Massivholz, Plattenwerkstoffe oder sonstige Materialien. Vorteile: - Sehr geringer Platzbedarf - Höchste Zeitersparnis durch extrem schnelle Fertigungszeiten - Schnelle Amortisation durch geringen Anschaffungspreis - Schnelles Erlernen der Technik durch einfachste Bedienung - Sauberkeit der Werkstücke bei geringer Absaugleistung durch Bearbeitung von unten - Extrem schnelle, einfache und variable Programmierung mit der Software MASTERWORK (Standard) - Extrem schnelle und einfache Programmierung kompletter Schränke durch den Einsatz von TrunCAD (Option) Technische Daten: Achsen: X-Achse: Max. Werkstücklänge: unbegrenzt, Min. Werkstücklänge: 250mm Verfahr-Geschwindigkeit: 0-25 m/min. Y-Achse: Max. Werkstückbreite: 1.000mm für alle Aggregate Min. Werkstückbreite: 80mm Verfahr-Geschwindigkeit: 0-50 m/min. Z-Achse: Max. Werkstückstärke: 60mm Min. Werkstückstärke: 10mm Verfahr-Geschwindigkeit: 0-20 m/min. Die minimalen und maximalen Werkstückgrößen sind abhängig vom Gewicht und auch vom Verhältnis Länge zu Breite! Aggregate: 16er Bohrkopf: vertikale Spindeln in X-Richtung: 5 Stück vertikale Spindeln in Y-Richtung: 5 Stück horizontale Doppelbohrspindel in X-Richtung: 2+2 Stück horizontale Doppelbohrspindel in Y-Richtung: 1+1 Stück Abstand Bohrspindeln: 32mm Drehzahl Bohrspindeln: 4.000 U/min. Motor: 1,7 kW Nutsäge: in X-Richtung Drehzahl: 4.000 U/min. Max. Sägeblattdurchmesser: 125mm Motor: 1,7 kW (Die Nutsäge ist im Bohrkopf integriert) Steuerung: Personal Computer HP Compaq 6000 Pro SFF PC Prozessor: Intel Celeron E3300 @ 2.50GHZ RAM: 1 GB Hard Disk: 300 GB CD-ROM Laufwerk Farbbildschirm 17’’ LCD Videokarte integriert 512 MB 2 Ethernet Karten Schnittstellen: 2 Serielle RS 232 - 1 Parallele - 10 USB - 1 ESATA Tastatur: Eingang PS 2 Mouse: Eingang PS 2 Betriebssystem: Windows 7 professional Programm: MASTERWORK-MASCHINEN-VERSION Weitere Daten: Benötigter Luftdruck: 8 bar Luftverbrauch: nax. 750 l/min. Absaugung: Volumen: 2.000 m³/h Luftgeschwindigkeit: 25 - 30 m/sec. Absaugstutzen: 1 x 150mm Weitere Ausstattungsmerkmale: - Lufttische am Arbeitsbereich - Rollentisch im Ein- und Auslauf - Sensor für Plattenvermessung - Kugelumlaufspindel- und Linear-Führungen - Zahnstangenantrieb - Zentralschmierung - Import von DXF Dateien "PARTNERSHIP EDITION" bestehend aus: Fräsaggregat, einschl. MASTERWORK Softwareerweiterung Drehzahl: 1.000 bis 18.000 U/min. Motor: 4,5 kW mit ISO 30 Aufnahme Einschl. integrierte Absaugsteuerung (Beim Bohren wird nur der Bohrkopf, beim Fräsen nur das Fräsaggregat abgesaugt) 6-fach Werkzeugwechsler 3 ISO 30 Kegel einschl. Spannzange Werkzeugbestückung, bestehend aus: HW Dübelbohrer: 5 Stück 5mm – GL 70mm - Sacklochbohrer 1 Stück 5mm – GL 70mm - Durchgangsbohrer 4 Stück 8mm – GL 57,5mm - Sacklochbohrer 2 Stück 10mm – GL 57,5mm – Sacklochbohrer 1 Stück 10mm – GL 70mm – Sacklochbohrer 1 Stück 8mm – GL 70mm - Sacklochbohrer 1 Stück 15mm – GL 70mm - Sacklochbohrer 1 Stück 35mm – GL 70mm - Sacklochbohrer 1 HW Nutsägeblatt d=125mm, Bohrung=20mm, Breite: 3,2mm, Z=24 WZ 1 DIA-Fräser, rechts - GL=103mm, NL=43mm, D=18mm, Schaft: 20x50mm, Z 1+1 1 DIA-Fräser, links - GL=103mm, NL=43mm, D=18mm, Schaft: 20x50mm, Z 1+1 1 VHW-Schlichtfräser, rechts, D=10mm Klappbare Rollenbahn im Ein.- und Auslauf Automatische Zentralschmierung (Technische Angaben laut Hersteller - ohne Gewähr!)

Pitch 32 mm︱Motor output 1,5 kW︱Clamping height max. 100 mm︱Number of spindles 19 St.︱

---

Schleicher Unidrill 19 ------------------------------- for carcass, frame, fittings and hole line drilling Technical specifications ------------------------------- Working width: 630 mm Maximum portal passage: 690 mm Clamping height: 100 mm Adjustment range of the boron unit: 75 mm Drilling stroke: 120 mm Motor: 1.5 kW, 380 V, 50 Hz Gear: 19 spindles, division 32 mm (10 clockwise and 9 counterclockwise) Spindle distance: min. 32 mm / max. 576 mm Spindle speed: n = 2,800 rpm Drill holder: M 10, snug fit 11 mm Machine width with stop rails 2000 mm Table height 820 mm Total height 1700 mm Weight 300 kg (technical information according to the manufacturer - without guarantee!)

Number of sanding units 1 St.︱Profile width 390 mm︱Profile height max. 390 mm︱

---

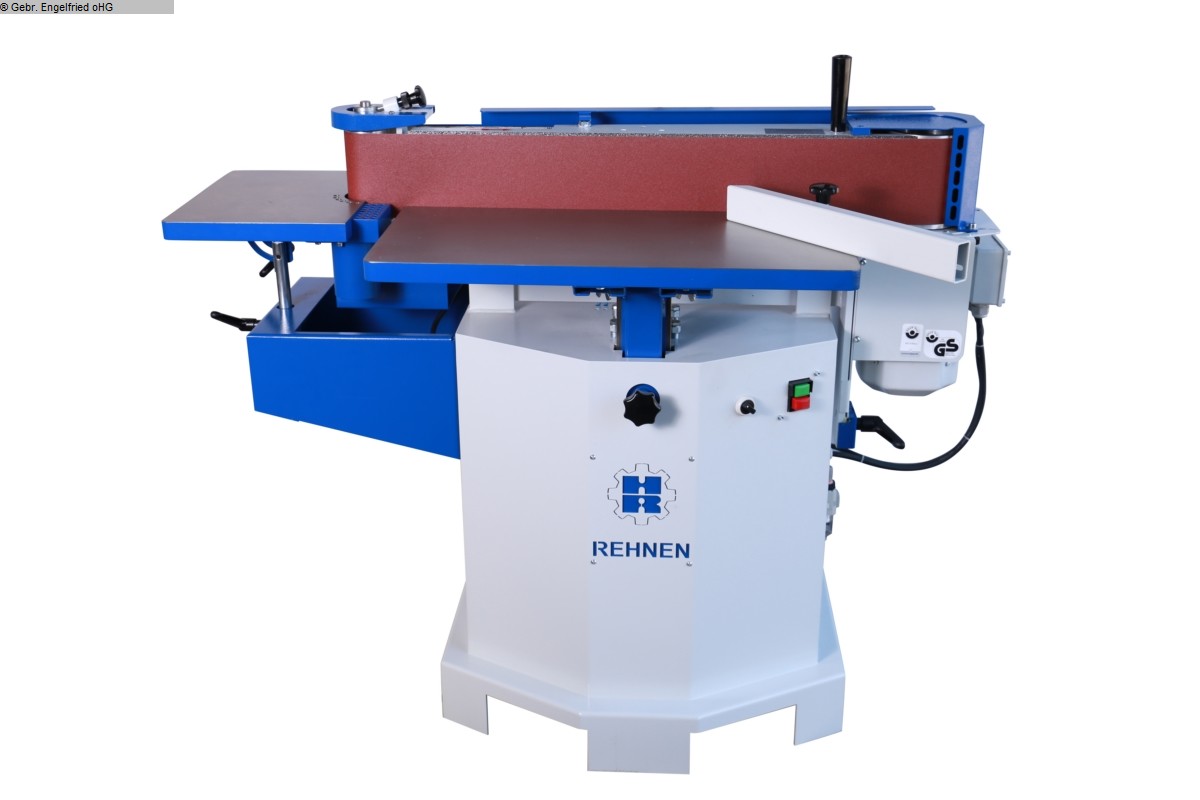

Oscillation ja ja / nein︱ ja ja/nein︱ ja ja/nein︱tiltable up to 45/90 Grad︱Motor output 3 kW︱Table dimensions 750x350 mm︱sanding width 150 mm︱Weight 200 kg︱

---
